Offering a safe, secure and conveniently located
facility to support a wide variety of mission-critical
web based, medical, financial, ASP, and other applications.
Offering a safe, secure and conveniently located facility to support a wide variety
of mission-critical web based, medical, financial, ASP, and other applications.
Data center is only five minutes from Interstate-95, centrally located on the
Internet
Coast in
Boca Raton,
Florida, 42.5 miles south of the Palm Beach/Martin County line and 52.1 Miles north
of downtown
Miami . The physically secure environment and redundant infrastructure offers a
broad range of options with guaranteed connectivity.
Each client has their own specific requirements; therefore
we offer a variety of options including:

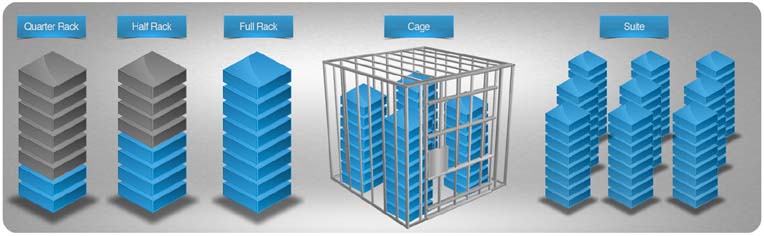

Locking cabinets – quarter, half and full-size
Cage space – 9x12 and custom
Clean, conditioned, UPS-backed power
Single or multiple dedicated 10, 20 or 30 amp circuits.
Bandwidth from 2Mbps to 1000 Mbps dedicated internet access;
fixed tiered or burstable.
Fiber Network
The backbone is connected via diverse
fiber routes and building entrance facilities. Out transport topology consists of
the following elements:
Bellsouth: Three OC-12 Fiber Optic Rings, each with two
diverse entrance facilities. This is accomplished using two independent Fujitsu
multiplexers and one Lucent DDM-2000, which provides diverse routes to mutilple
central offices, including Boca Main and Boca Teeca.
Progress Telecom: Two OC-48 Fiber Optic Rings, each with
diverse entrance facilities, utilizing the latest in Cisco SONET multiplexer technology.
One ring runs south to
Miami via
Fort Lauderdale and the second ring runs north to
Melbourne, west to
Tampa and back to
Miami .
TelCove: One OC-12 Fiber Optic Ring, multi-homed with
diverse entrance facilities connect us to the TelCove network in
Ft.
Lauderdale ,
Miami, and the
Palm
Beaches .
Facilities Infrastructure Includes:
FPL Power in excess of 1,200 Amps of three-phase,
480 volt electrical service
APC Airflow AFX 26
ton up-flow CRAC units with matching APC condenser units

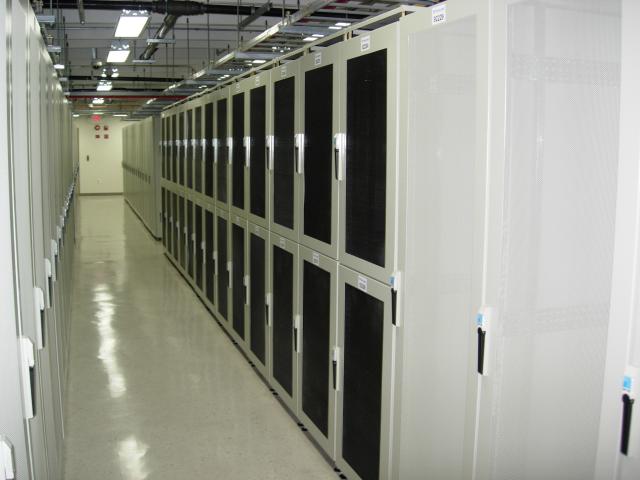

130 Rittal 42U locking
cabinets; each with three exhaust fans and one rack-mount PDU
Fike Cheetah FM-200
dry chemical agent system for fire detection & suppression with advanced VESDA
laser early-warning detection
Custom-built BAFG
850 KVA Diesel Generator with sound attenuated enclosure and UL-142 double-walled,
2,500 gallon diesel fuel tank
APC Silcon SL240KG
UPS with Static Bypass Switch and PDI Systems electronic PDU to manage and monitor
individual electrical breaker usage per customer.
ASCO isolation bypass
automatic transfer switch
About the
Boca Raton Colocation Facility
Type-1 all cement building
Located 15 feet above sea level
Located along the FECI rail line, where every major fiber
provider has facilities
24/7 CCTV color security cameras, both indoor and outdoor
Video surveillance with live internet stream for personnel
to monitor and archive CDR/tape
Northern Access Control solutions with biometric palm
reader/access card combination and remote access capabilities to integrate the most
advanced security techniques
